Complete renovation of the compressor station for Poděbradka
As part of the modernization project, we arranged for the delivery of a new machine, the relocation of existing equipment, and a full turnkey installation, including structural modifications.
Services provided
Client's initial situation
- 2× SIAD MS3, 40 bar
- frequent malfunctions and downtime
- high operating costs
- limited efficiency
- efforts to obtain an EU gran
The modernization of the compressor station in Poděbrady was crucial for the client. The existing equipment was no longer able to deliver the required output; frequent breakdowns led to downtime, and operating costs were rising. The goal of the project was therefore not only to increase reliability and efficiency but also to achieve greater sustainability, supported by EU grant programs.
Project progress
- Technical design and tender process

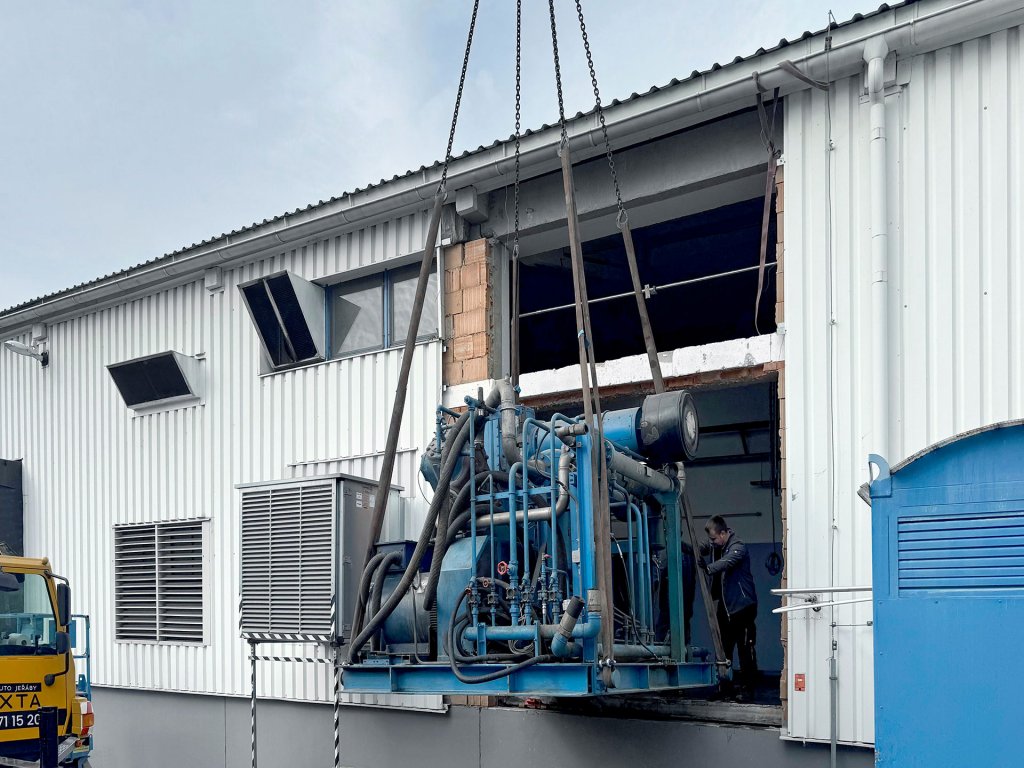

- Dismantling of the old SIAD equipment
- Complete construction modifications
- Installation of a new compressor and accessorie
Our collaboration began as early as the tender preparation phase. Together, we defined the project parameters, recommended suitable technology, and provided all the necessary technical documentation. A major challenge was coordinating the demolition and construction work, from installing the new industrial flooring to creating an access opening for bringing in the new equipment.

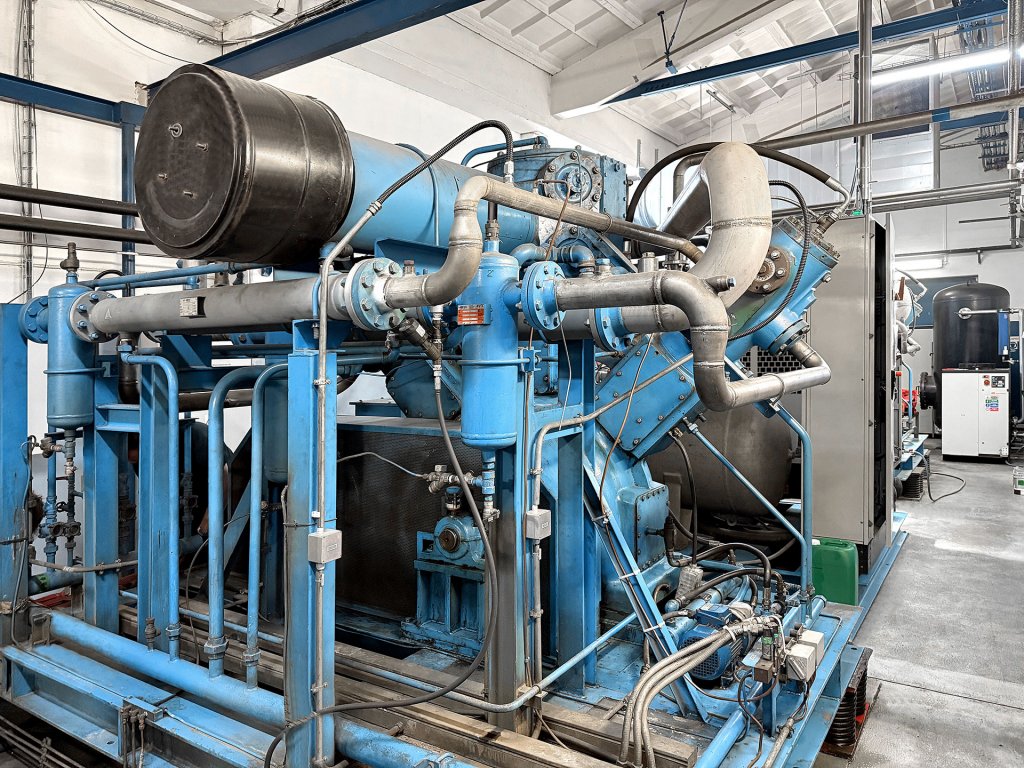

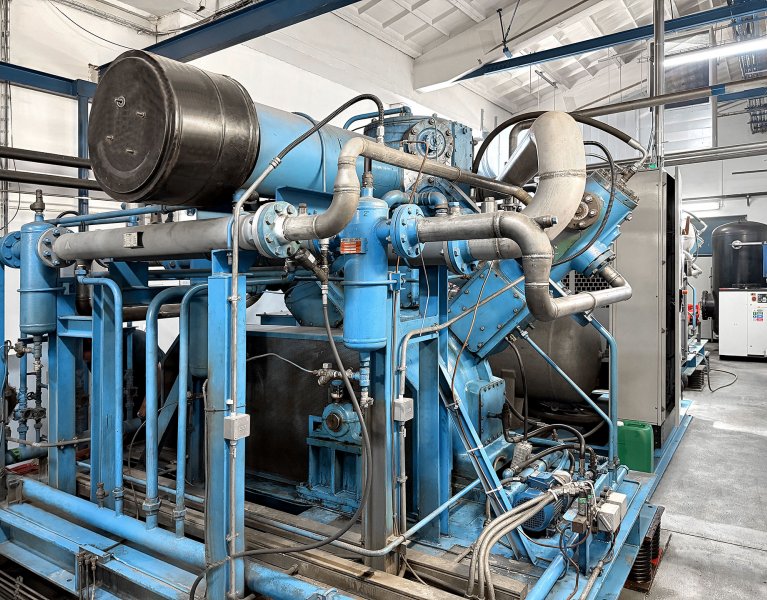

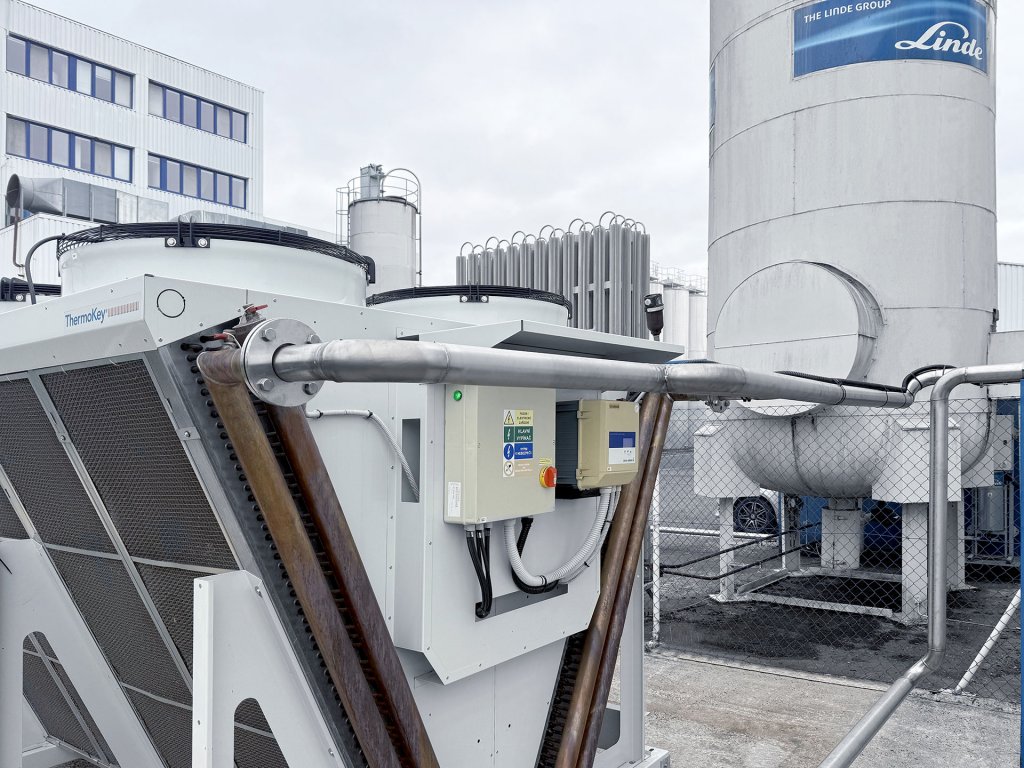

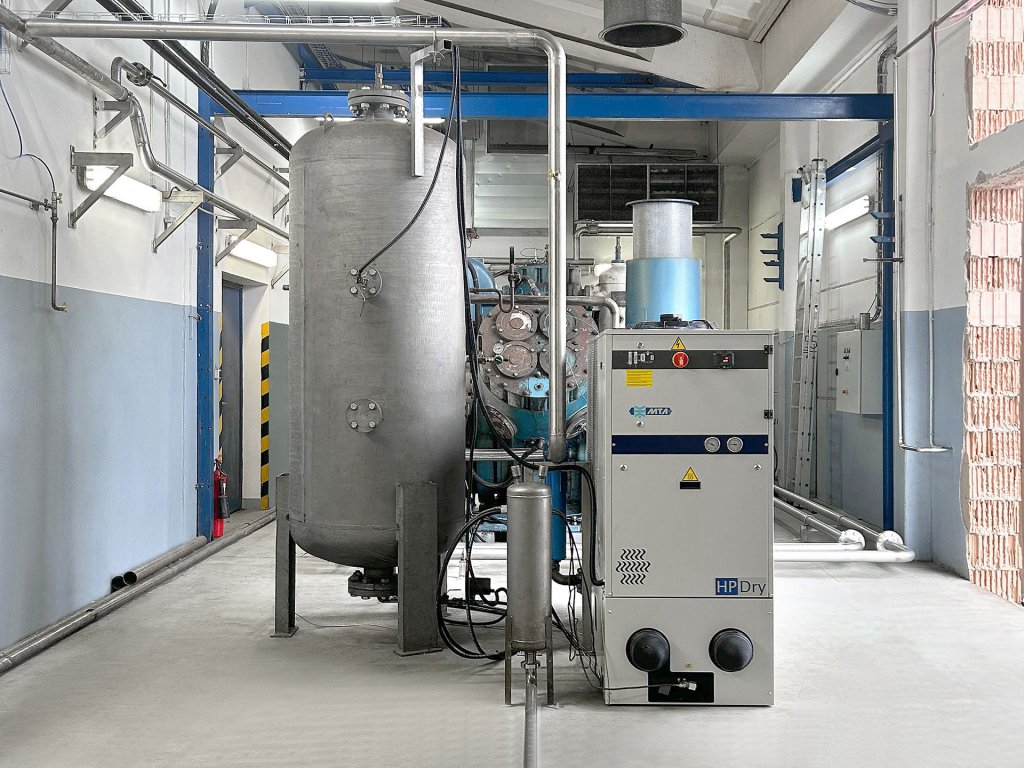

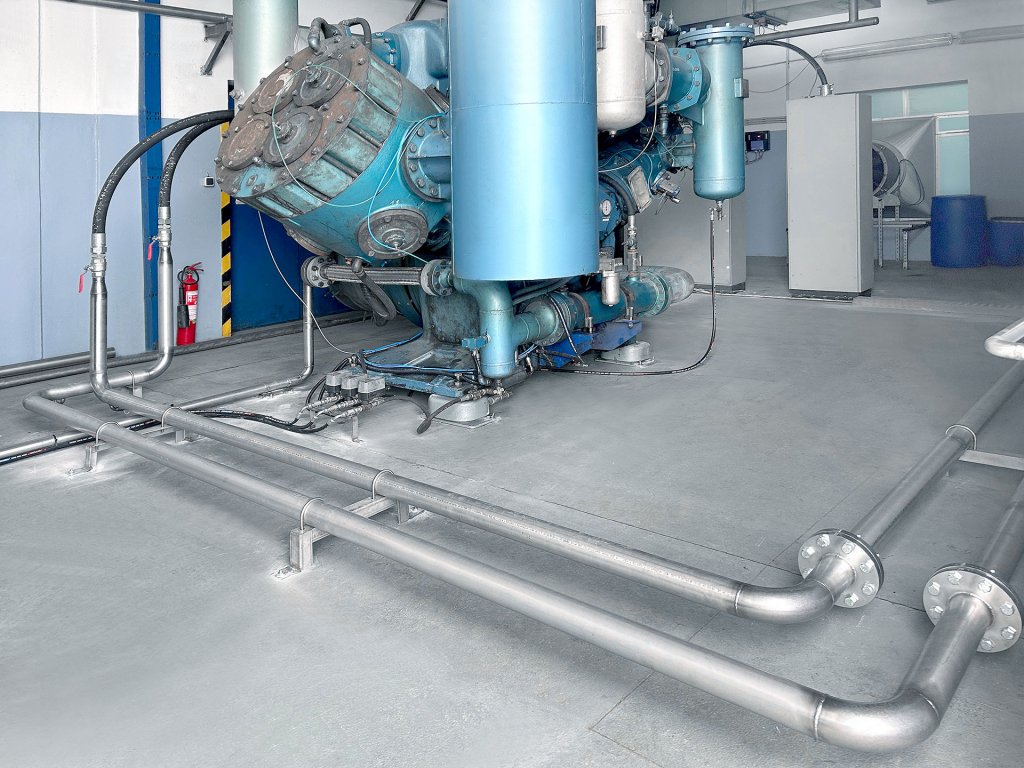

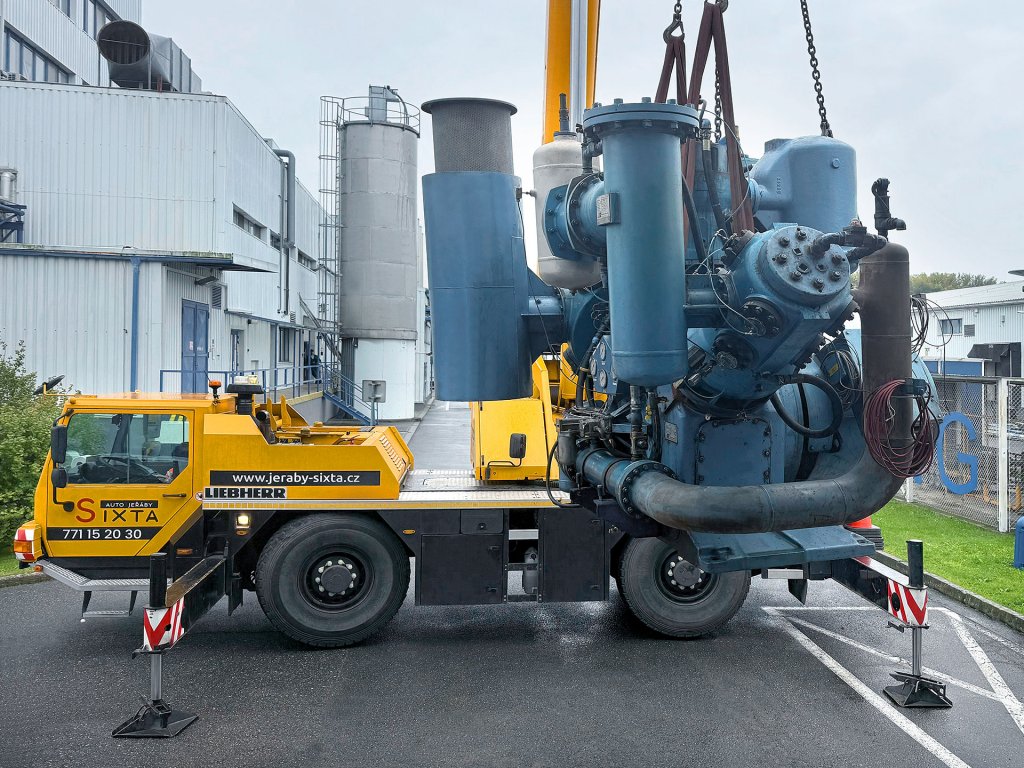

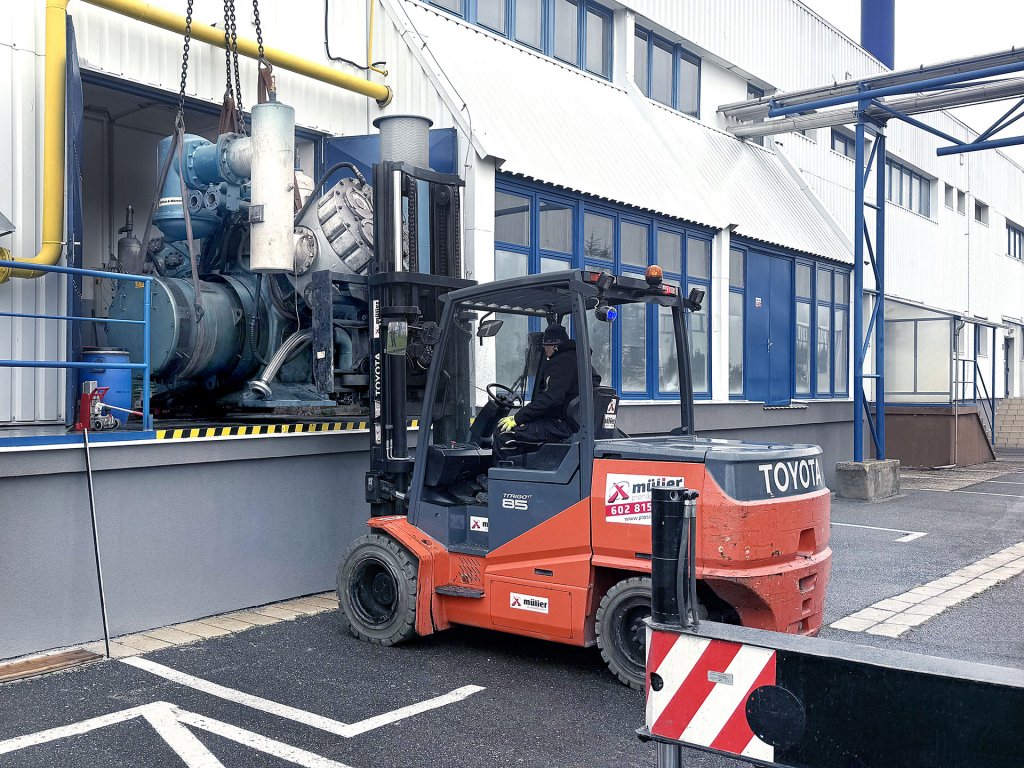

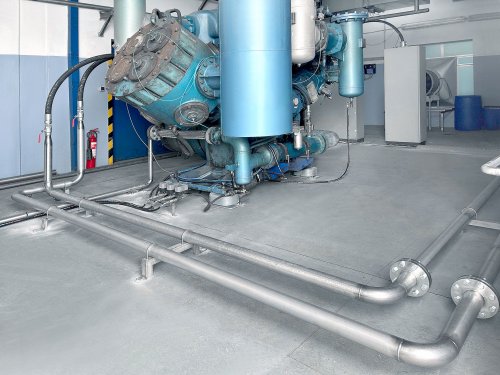

The implementation itself took place in two steps. First, we dismantled two old SIAD compressors and moved the existing Belliss WH40H3N to another compressor room. We then delivered and installed a new Belliss Morcom WH40 high-pressure compressor with a water-cooled motor, a PLC panel with iConn remote access, three-stage filtration, a freeze-dryer, and a complete cooling system. The project also included the installation of sensors to monitor all temperatures, pressures, and flow rates.
Project results
- Belliss Morcom WH40
- Digitalization and remote monitoring capabilities
- Modern and energy-efficient technolog
The result is a modern, energy-efficient, and fully digitized compressor station that provides the client with stable performance and significant savings in operating costs. Thanks to a comprehensive turnkey solution and 24/7 service availability, Mattoni can be confident of reliable operation without unnecessary downtime and is well-positioned for years of future growth.
